1E6 Infrared IR Remote Control Sensor Module kit

Description

Arduino suite by ultrathin Mini infrared wireless remote control infrared remote control and 38 KHZ infrared receiving module, the Mini ultra-thin has 20 function keys, the infrared emission furthest distance up to 8 meters, very suitable for indoor control devices of all kinds. Infrared remote control receiving modules can receive standard 38 KHz modulation signals. by means of programming the Arduino, the remote control signal decoding operation can be realized, which can produce all kinds of remote control robots and interactive work.

Specifications

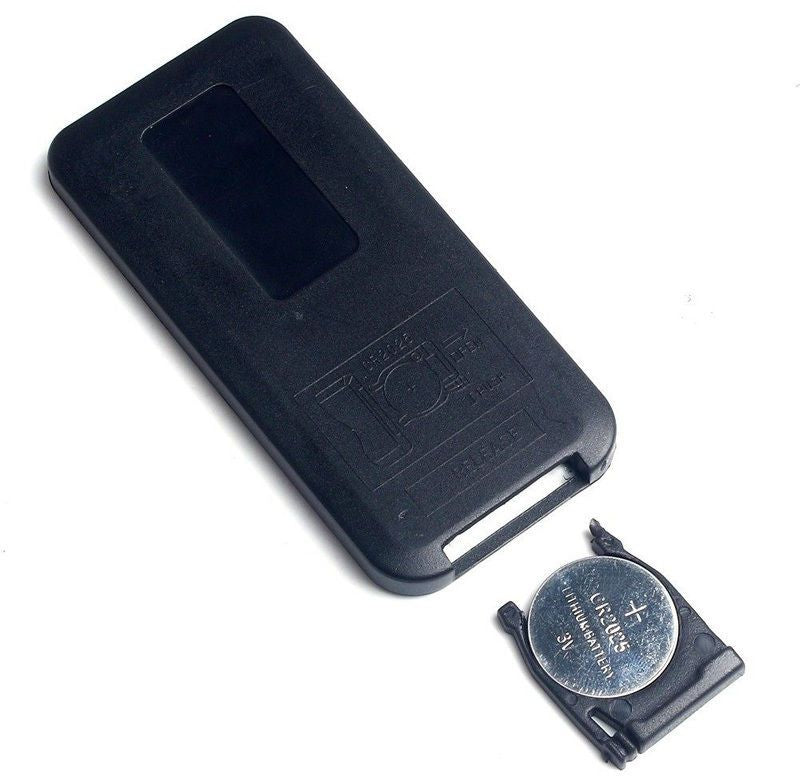

• Battery: CR2025 Button batteries
• Transmission Distance: up to 8m (depending on the surrounding environment, sensitivity of receiver, etc.)
• Effective Angle: 60°
• Static Current: 3~5uA, Dynamic Current: 3~5mA
• PIN 1 LEFT PIN = GROUND
• PIN 2 MIDDLE PIN = 5V
• PIN 3 RIGHT PIN = SIGNAL OUT TO ARDUINO PIN 11

Package includes:

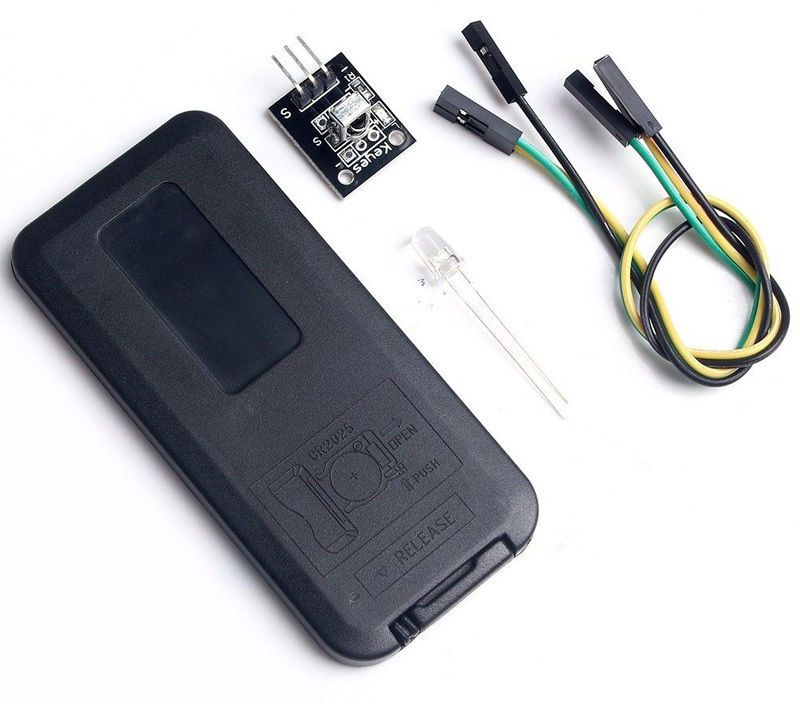

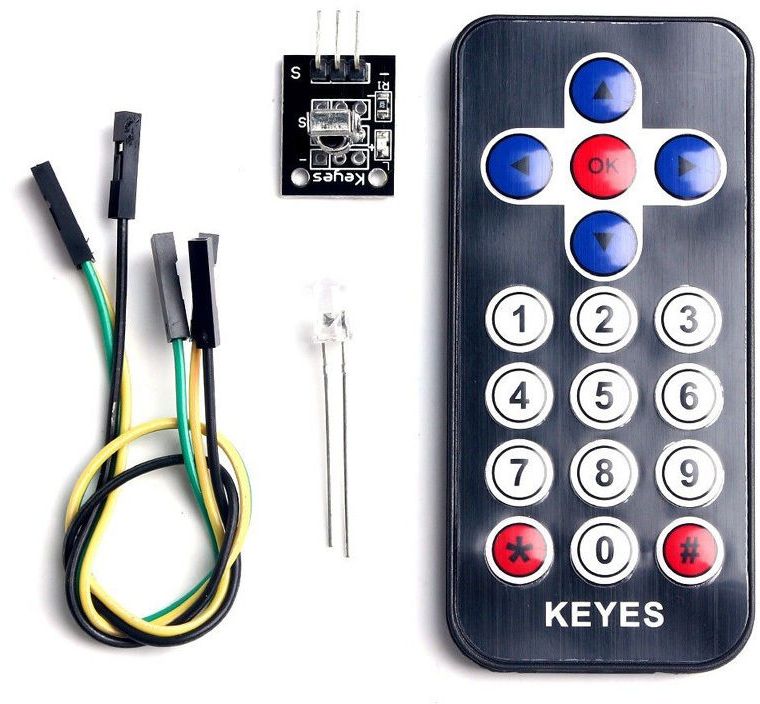

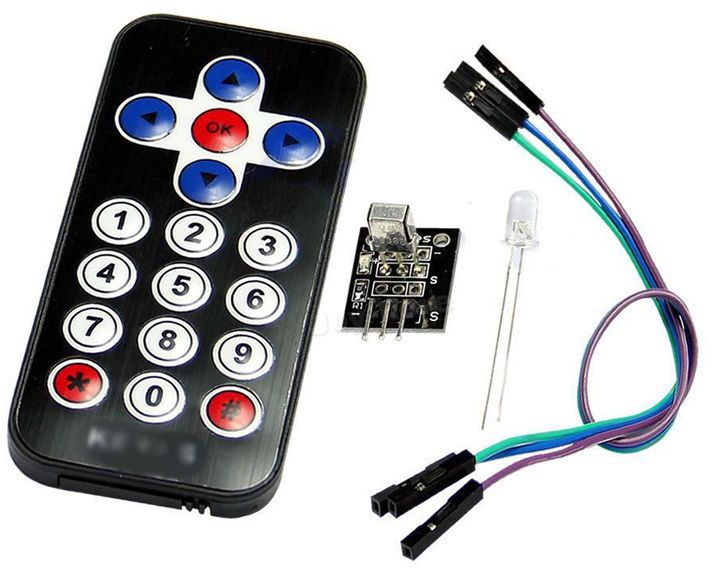

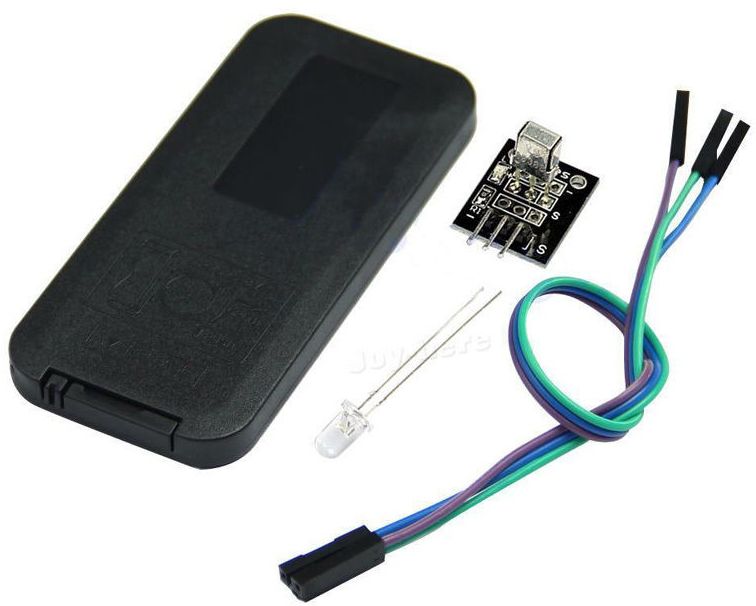

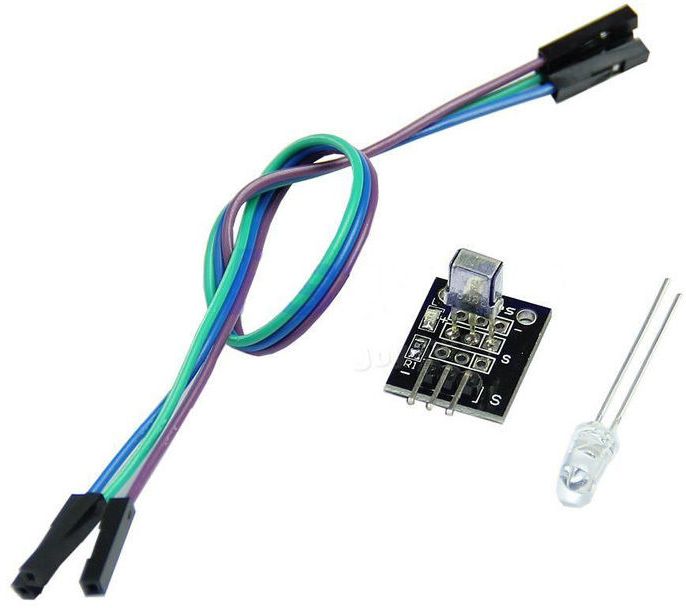

1 X INFRARED IR REMOTE CONTROL MODULE KITS
