Description
NFC, or Near Field Communication, is a wireless technology used for short-range communication between devices. NTAG215 is a type of NFC tag produced by Texas Instruments (TI). NFC cards are similar to traditional credit cards and can be used to make payments at NFC-enabled merchants. Additionally, NFC cards can also be used to store and access a range of information, such as contactless transportation passes and employee badges.
Specifications
- Product type: 1101-90NFC
- Antenna size: 76*45mm
- Antenna Material: PET + AL

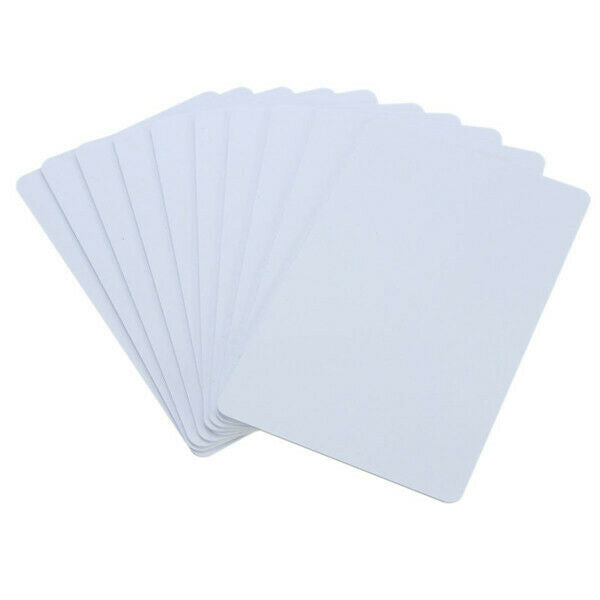

- Cards size: 85.6*54mm
- Cards Thickness: 0.84mm
- Cards Material: PVC
Electronic Specifications
- Chip Type: NTAG215
- Protocol: ISO/IEC 14443 A
- Operating frequency: 13.56 MHzÂ
- NFC Forum Type: NFC Forum Type 2 TagÂ
- Lockable: YESÂ
Overall Performance
- Reading distance: 0–10 cmÂ
- Memory: 540BytesÂ
- Usable Memory: 504BytesÂ
- Write endurance: > 100000 cyclesÂ
- Data Retention: > 10 YearsÂ
- Quality: 100% test
Environment
- Operating temperature: -25 °C to 70 °C
- Storage temperature: -55 °C to 125 °C
Applications
Use for NFC devices (like NFC mobile phones),Can use for Amiibo, Can contain information or automatically Command (like Open URL, Make a phone call, Open a local file or an application, etc.)
