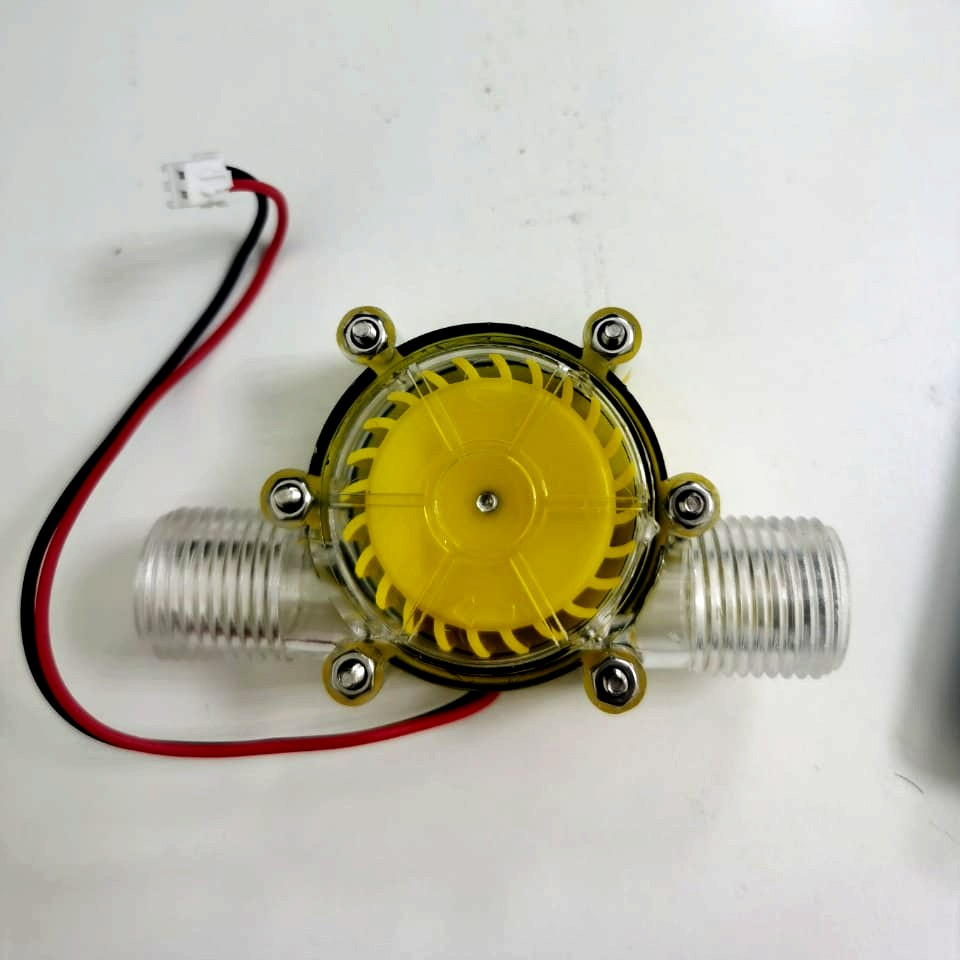

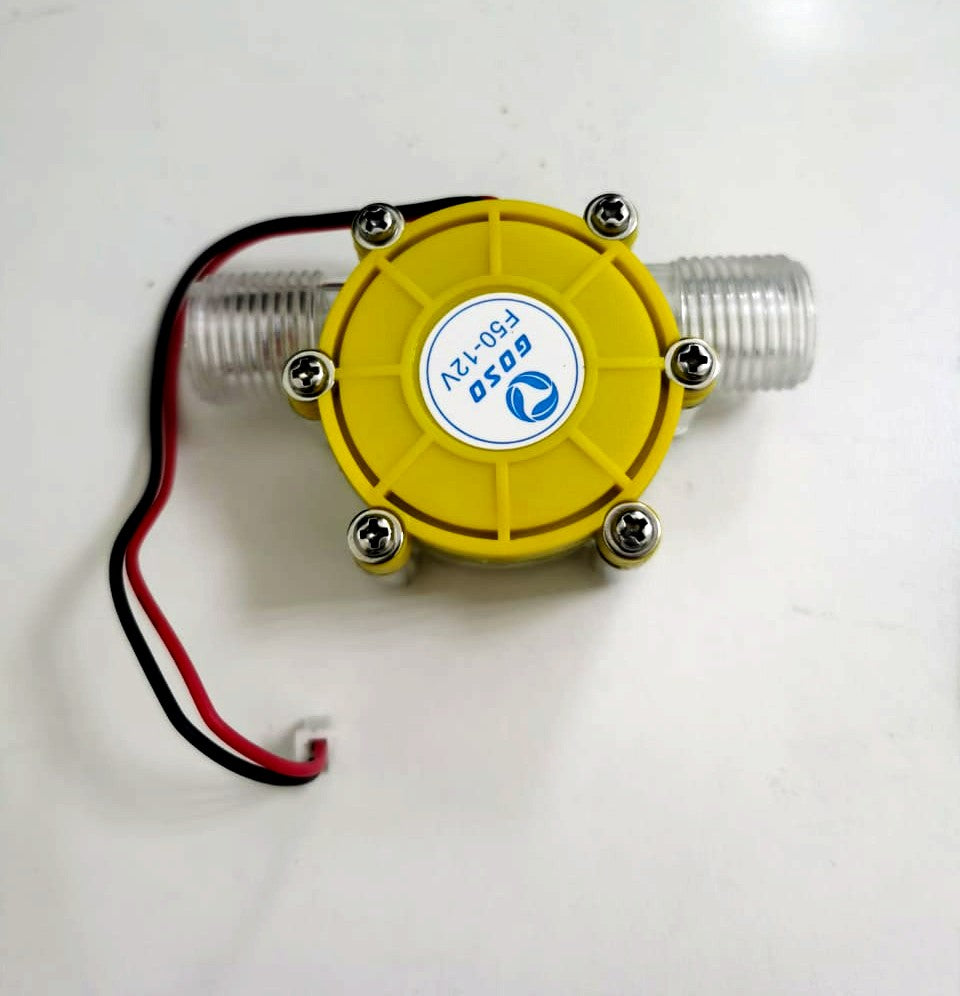

10 W Water Flow Pump Micro Hydro Turbine Generator Hydraulic Flow Generator 12 V
Ideal for converting energy from water into electrical mechanical energy equipment
D Irectly used to charge a small battery , mobile phone, or power supply lights LED, etc.
Output voltage : Max. 80V (1.2Mpa)
Current Output : Max. ≥220mA (12V)
Resistance line : 10.5 ± 5Ω
Insulation Resistance : 10MΩ (DC100 megohmmeter)
C Losed Outle T Compression : Max. 0.6Mpa
Open Outle T Compression : Max. 1.2Mpa
Starting water pressure : 0.05Mpa
Axial clearance : 0.2-1.0mm
Mechanical noise : ≤55dB
Output characteristics: the output voltage without the voltage regulator circuit is proportional to the water pressure
Installation: household standard 1/2 inch water pipe ( outer diameter : 20mm , inner diameter : 13mm
