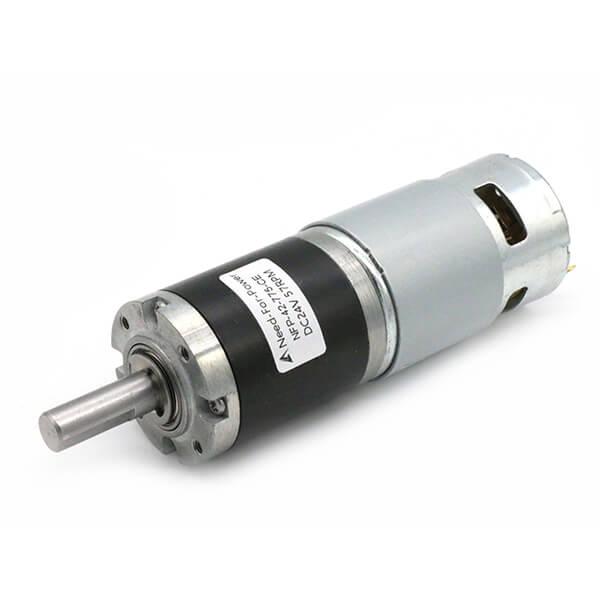

Compact Powerful Efficient Gear DC Motors, Stable Output, Made Of High-Quality Materials Of One-Time Forming Rotor, High Conductivity, Long Wear Life, High Temperature Resistance, Effective Dust Isolation, Wear Resistance, Long Life, Low Speed, Low Noise.
| Ratio | No Load | Rated Load | Stall | ||||
|---|---|---|---|---|---|---|---|
| i : 1 | Speed | Current | Speed | Current | Torque | Torque | Current |
| 3.7 | 1351 rpm | 0.7A | 1027 rpm | 3.3A | 2kg.cm | 5kg.cm | 11A |
| 5.18 | 965 rpm | 0.7A | 733 rpm | 3.3A | 3kg.cm | 7kg.cm | 11A |
| 19 | 263 rpm | 0.7A | 200 rpm | 3.3A | 11kg.cm | 35kg.cm | 11A |
| 27 | 185 rpm | 0.7A | 140 rpm | 3.3A | 16kg.cm | 50kg.cm | 11A |
| 50 | 100 rpm | 0.7A | 76 rpm | 3.3A | 30kg.cm | 80kg.cm | 11A |
| 71 | 70 rpm | 0.7A | 53 rpm | 3.3A | 42kg.cm | 113kg.cm | 11A |
| 100 | 50 rpm | 0.7A | 38 rpm | 3.3A | 60kg.cm | 160kg.cm | 11A |
| 139 | 36 rpm | 0.7A | 27 rpm | 3.3A | 83kg.cm | 200kg.cm | 11A |
