Blue PCB Electronics

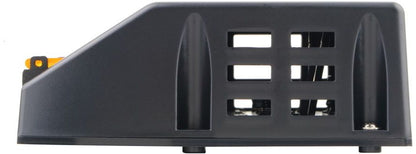

D3A 10A 12V/24V Solar Panel Charge Controller Battery Regulator

D3A 10A 12V/24V Solar Panel Charge Controller Battery Regulator

Regular price Dhs. 120.00
Regular price Dhs. 150.00 Sale price Dhs. 120.00
Sale Sold out
View full details



Features:



Automatically manage the working of solar panel and battery in solar system.

Overloading & short-circuit protection.

Reverse discharging & reverse-polarity protection.

Under-voltage and over-charging protection.

Protection from lightning strike.

Prolong the battery life cycle and keep the load work well.

Easy to set up and operate.

Suitable for small solar energy system.

Specification:



  • Voltage: DC 12V / 24V
  • Self-consuming: 10MA
  • Rated Charge Current: 20A
  • Rated Load Current: 20A

Over charge:

  • Protection: 14.4V / 28.8V
  • Floating charge: 13.5V / 27V
  • Recover: 13.2V / 26.4V


Over discharge:

  • Protection: 10.8V / 21.6V
  • Recover: 12.3V / 24.6V


Load over voltage:

  • Protection: 16.5V / 34V
  • Recover: 15V / 30V
  • Max open-circuit voltage of the solar panel: 25V / 36V
  • Operating temperature: -20℃-50℃
  • Color: Black
  • Item size: 10.2 * 9.5 * 3.8cm / 4 * 3.7 * 1.5in

Package Included:



  • 1 X 10A 12V/24V Solar Panel Charge Controller Battery Regulator
