Description
The Arduino Pro Mini is a microcontroller board based on the ATmega328P.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board. The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.
The Arduino Pro Mini was designed and is manufactured by SparkFun Electronics.
Specifications:
- 14 Digital input / output port: RX, TX, D2 - D13
- 8 analog inputs: A0 - A7
- 1 pairs of ports TTL level serial transceiver: RX / TX
- 6 PWM ports: D3, D5, D6, D9, D10, D11
- Using Atmel AtMega328P-AU MCU
- Support serial download
- Support for external 3.3V - 12V DC power supply
- Support 9V battery supply
- Clock frequency: 16MHz
- Size: 33.3 x 18.0mm
- Circuit voltage: 3.3 V
- Standard power supply: 5V

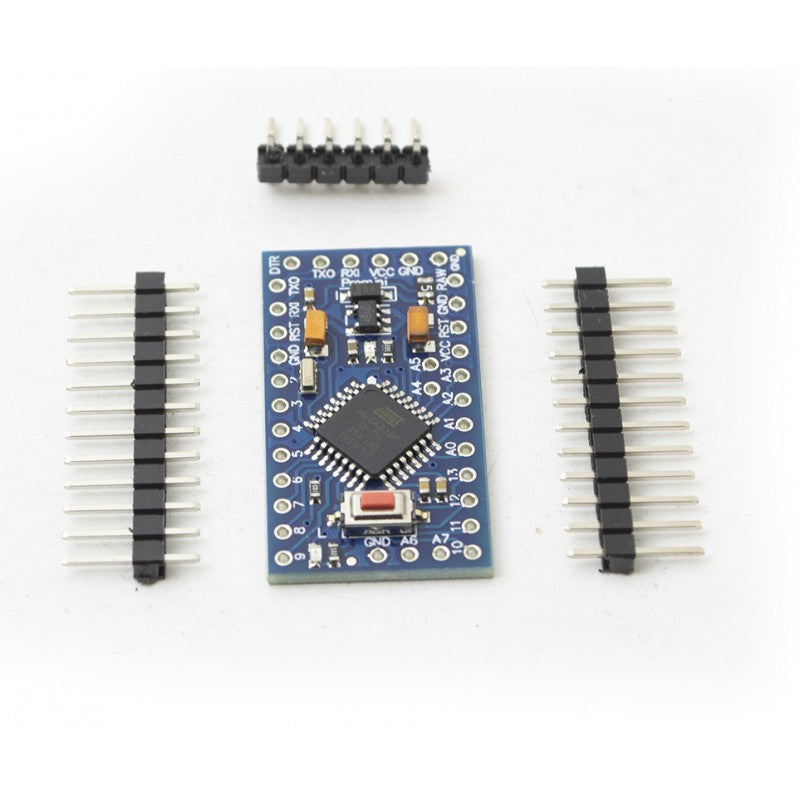

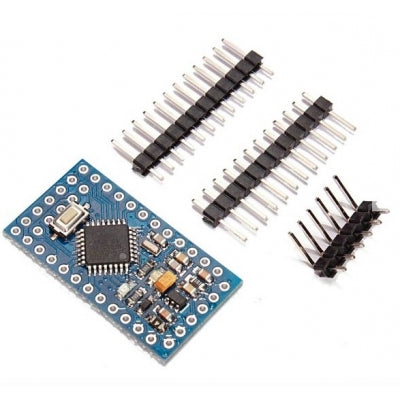

Package includes
- 1 x Arduino pro mini ATMEGA328P
- 3 x Pins
