2B6 Active Buzzer module

2B6 Active Buzzer module

Regular price Dhs. 15.00
Regular price Sale price Dhs. 15.00
Sale Sold out
View full details

Description

An Active Buzzer module is a type of safety and alerting system that is commonly used in various applications such as door and window alarms, security systems, and personal safety devices. It typically consists of a buzzer or loudspeaker that produces an audible sound when triggered, as well as an electrical circuit that powers the buzzer and controls its operation. The circuit can be activated by a sensor, such as a motion detector or magnetic switch, that detects the presence of an object or movement and sends a signal to the buzzer. The module may also include features such as a built-in battery, a flashing light, or an audible alert.

Specifications

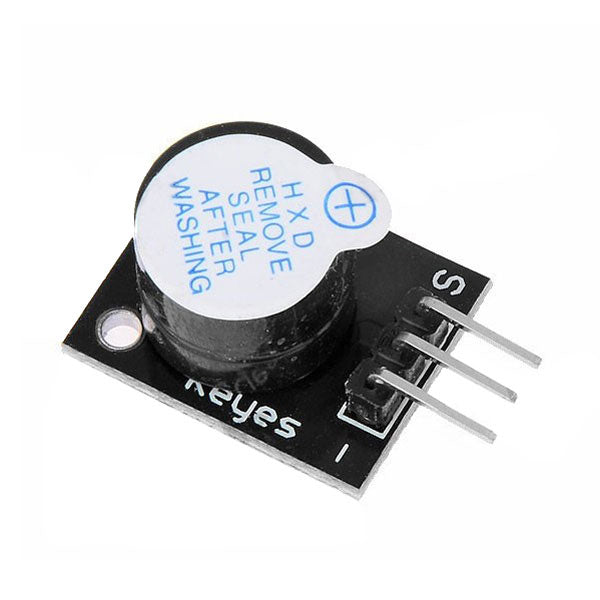

The  Active Buzzer module consists of an active piezoelectric buzzer, it generates a sound of approximately 2.5 kHz when the signal is high.

Operating Voltage  3.5V ~ 5.5V
Maximum Current 30mA / 5VDC
Resonance Frequency 2500Hz ± 300Hz
Minimum Sound Output 85Db @ 10cm
Working Temperature -20°C ~ 70°C [-4°F ~ 158°F]
Storage Temperature -30°C ~ 105°C [-22°F ~ 221°F]
Dimensions 18.5mm x 15mm [0.728in x 0.591in]


HOW TO CONNECT AN ACTIVE BUZZER TO THE ARDUINO

Let’s build an example project that will control an active buzzer with the press of a button.

Here are the parts you will need:

  • Arduino Uno
  • Jumper wires
  • Breadboard
  • Tactile push button
  • Active buzzer

To connect the active buzzer and push button to the Arduino, follow the diagram below:

Active Buzzer.png

HOW TO PROGRAM AN ACTIVE BUZZER ON THE ARDUINO

Once your circuit is connected, upload this code to the Arduino:


int buzzerPin = 8;
int buttonPin = 7;

void setup() {
  pinMode(buzzerPin, OUTPUT);
  pinMode(buttonPin, INPUT_PULLUP);
}

void loop() {
  int buttonState = digitalRead(buttonPin);

  if (buttonState == LOW) {
    digitalWrite(buzzerPin, HIGH);
  }

  if (buttonState == HIGH) {
    digitalWrite(buzzerPin, LOW);
  }
}

EXPLANATION OF THE CODE

Active buzzers are programmed just like LEDs. You digital write the buzzer pin HIGH to turn it on, and write the buzzer pin LOW to turn it off.

At the top of the sketch we declare two pin variables. The first pin variable is called buzzerPin and is set equal to Arduino pin 8. The other pin variable is called buttonPin and is set equal to pin 7.

In the setup() section the buzzerPin is set as an OUTPUT with the pinMode() function. The buttonPin is set as an INPUT with internal pullup resistor by using INPUT_PULLUP as the second argument in the pinMode() function.

In the loop() section we take a digital read of the buttonPin and store the value in a local int variable called buttonState. Then we have two if statements that say “if the buttonState is LOW then digital write the buzzer pin HIGH, and if the buttonState is HIGH then digital write the buzzer pin LOW”.

After you connect the circuit and upload the code, you should see that pressing the button turns the buzzer on.
