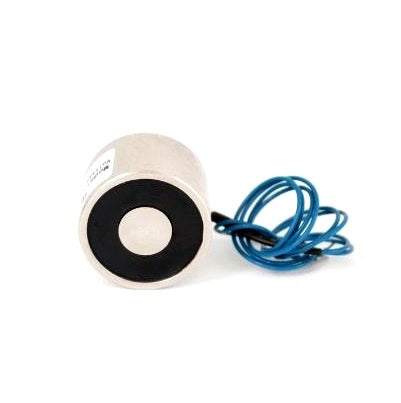

DC 12V Holding Electromagnet Lift Magnet Electric Motor DT 5kg P25/20Â
Electromagnet
Powerful and compact
Smooth and flat Area
Low consumption and reliably
Applications: Conveyor, sorting machine, mechanical arm, experimental facility, etc.
Input voltage: 12V DC Current consumption: 0.33AÂ
Power consumption: 4WÂ
Material: metalÂ
Color: silverÂ
Specifications:Â
Model: ZYE1-P25/ 20Â
thread Size: M4Â
Holding force: 11 lbs/ 5kgÂ
Diameter: approx. 25 mmÂ
Center Diameter: approx. 10 mmÂ
Height: 20 mmÂ
Cable length: approx. 23 cmÂ
Package: 1 x Holding Electromagnet
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
