Product description
8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
Voltage level: 1.8V-6V
Dimension: 21mm x 15mm
How to Use
In the case of translating between 3.3V and 5V system:
VCCA connects to 3.3V power supply
VCCB connects to 5V power supply
GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
When Ax has TTL 3.3V input, Bx will get TTL 5V output When Bx has TTL 5V input, Ax will get TTL 3.3V output NO direction control required
Packing List:

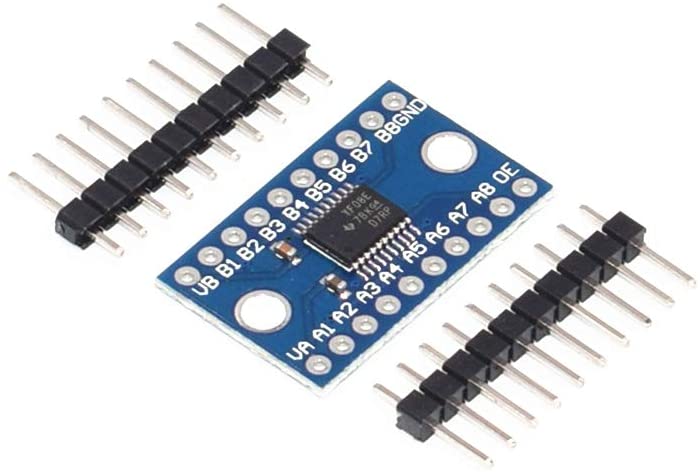

TXS0108E Logic Converter * 1
