Applications
RFID labels are widely used in personnel management, Science, materials management, supply chain management, leasing and library management, retail supply chain management, anti-counterfeit protection, asset management, Factory automation, parcel, handling, fashion, consumer, enterprise and campus card, bus card, highway fees, parking, district management, micro-payment, e-purse and other fields.
Â
Â
Specifications
UHF Frequency: Â Â Â Â Â Â Â Â Â Â Â Â ISM 860Â ~Â 960 MHz
Certification: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â ISO18000-6C, EPC GEN2
RFID Chip: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Alien Higgs-3Â
Operation Mode: Â Â Â Â Â Â Â Â Â Â Â Â FHSS
User Memory: Â Â Â Â Â Â Â Â Â Â Â Â Â Â 512 bits
EPC Memory:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 96 bits
TID Memory: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 64 bit
Read & Write: Â Â Â Â Â Â Â Â Â Â Â Â Â Â 100000 Times
Data retention: Â Â Â Â Â Â Â Â Â Â Â Â Â Â >10 Years
Basing Material: Â Â Â Â Â Â Â Â Â Â Â Â Â Paper
Antenna Material: Â Â Â Â Â Â Â Â Â Â Â Â Aluminum
Detection Distance:           6 meters(depends on the RFID reader/writer and environments)

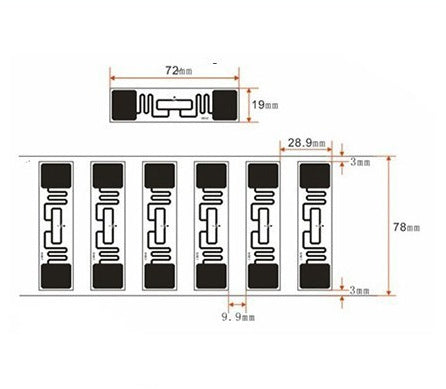

Antenna Size: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 70 x 19 mm
Tag Size:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 72 x 21 mm
Operating Temperature:       - 25°C - 50°C (- 13°F to 122°F)
Storage temperature:         -20°C - 80°C (-4°F to 176°F)
FeaturesÂ
- Meets EPCglobal Gen2 (V 1.2.0) as well as ISO/IEC 18000-6CÂ
- Worldwide operation in the RFID UHF bands (860-960 MHz)Â
- 800-Bits of Nonvolatile MemoryÂ
- 96-EPC Bits, extensible to 480 BitsÂ
- 512 User BitsÂ
- 64 Bit Unique TIDÂ
- 32 Bit Access and 32 bit Kill PasswordsÂ
- with adhesive back
Package includeÂ

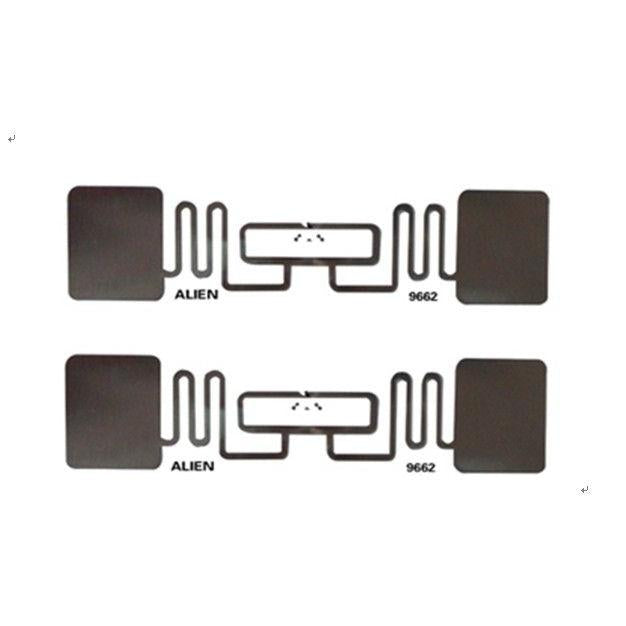

- 5 x RFID Tag UHF 860-960 MHz Alien 9662 Adhesive Soft Sticker
