Description

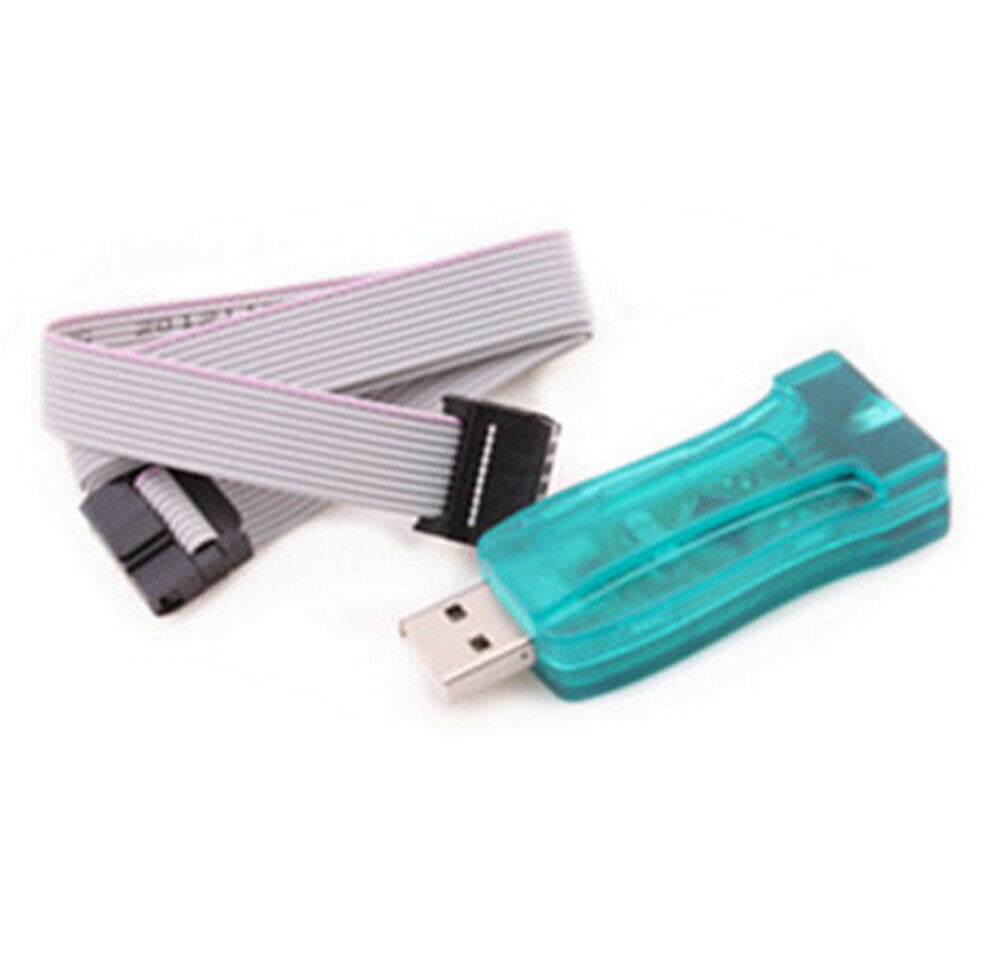

The USBASP programmer adapter is a device used for programming microcontrollers in the AVR line of chipsets, which includes the ATMEGA8 and ATMEGA128. It supports Arduino, a popular open-source electronics platform that simplifies the process of creating interactive circuits. This programmer adapter also comes equipped with an protection case that safeguards it during usage and transports.
Features
-
Input voltage 5V (USB); Output Voltage: 3.3V or 5V [selectable using miniature Switch]
-
Allows read or write the microcontroller EEPROM, firmware, fuse bits, and lock bits, 5 KB/sec maximum write speed; Support for AVRDude from version 5.2 onwards, The firmware source code can be downloaded from the USBasp website
-
Support for Linux, OS X and Windows (will work on vista)
-
Software controlled SCK option to support targets with low clock speed (< 1.5MHz), 10 pin ISP interface
-
These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit
Supported Microcontrollers Include
5V USBASP ISP AVR Programmer Adapter Protection Case ATMEGA8 ATMEGA128 for Arduino Supported microcontrollers include: Mega Series ATmega8 ATmega48 ATmega88 ATmega168 ATmega328 ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16 ATmega161 ATmega162 ATmega163 ATmega164 ATmega169 ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329 ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649 ATmega6490 ATmega8515 ATmega8535 Tiny Series ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26 ATtiny45 ATtiny85 ATtiny2313 Classic Series AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535 CAN Series AT90CAN128 PWM Series AT90PWM2 AT90PWM3
Package Includes
- 1PCS*5V USBASP ISP AVR Programmer Adapter Protection Case ATMEGA8 ATMEGA128 Arduino
