Specification:
Â
| Product Name | Positive Voltage Regulator |

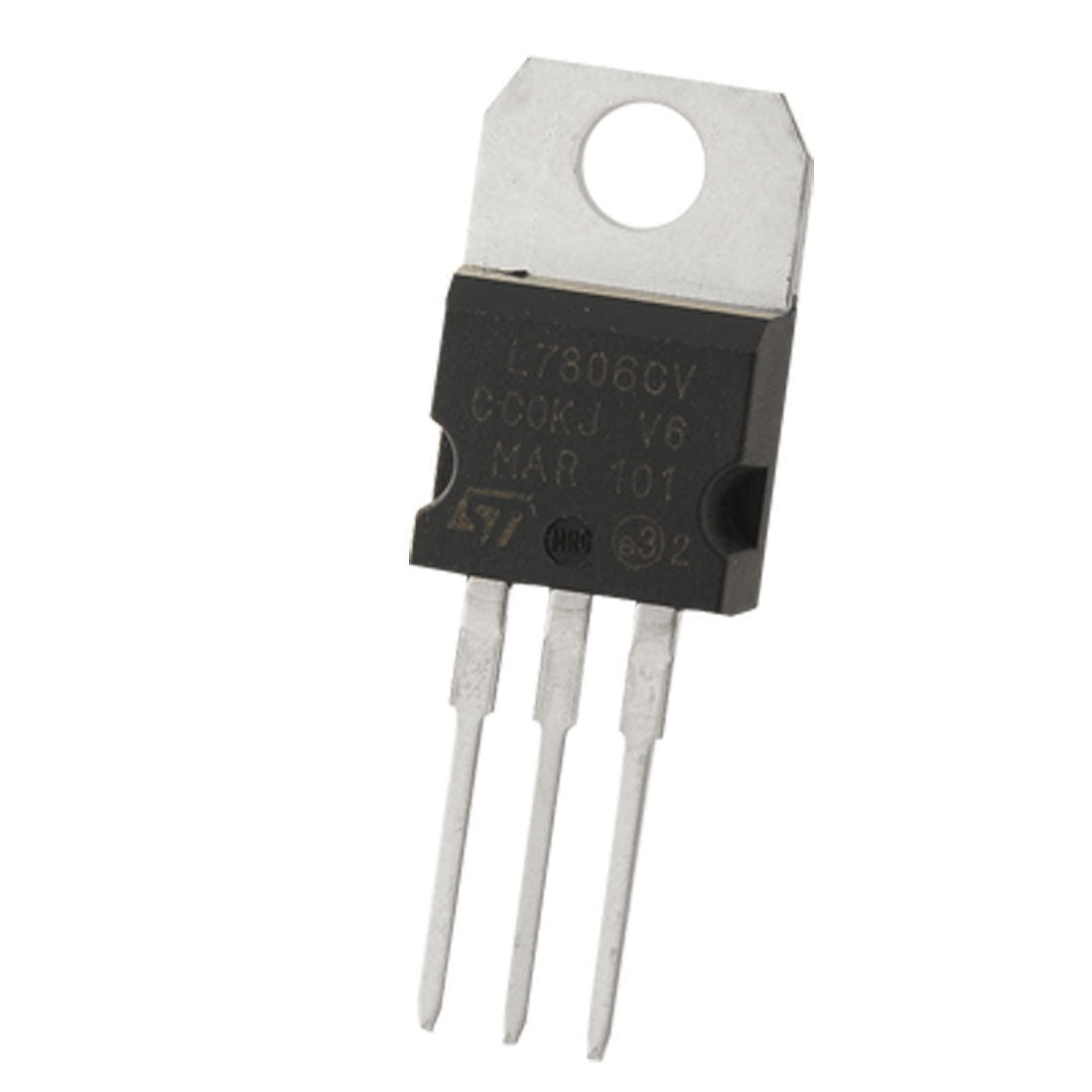

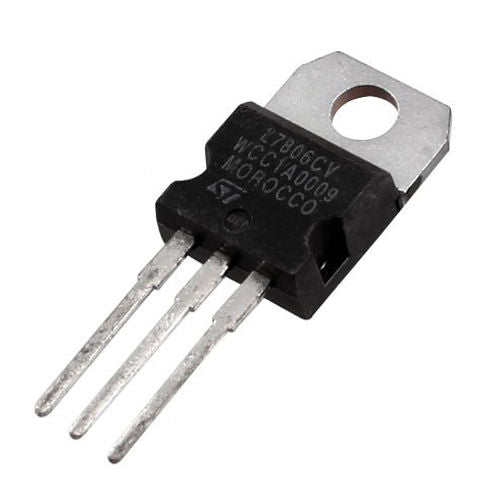

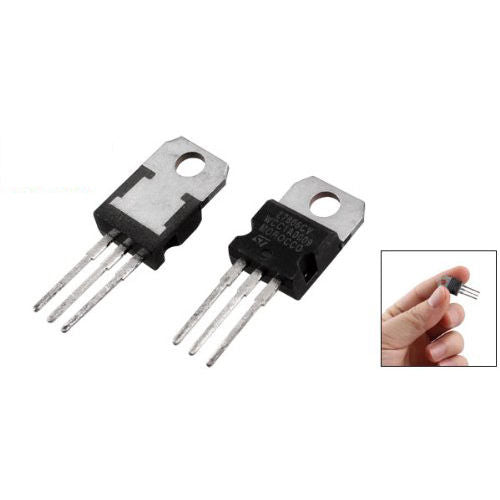

| Model | L7806CV |
| VRRM | 6V |
| IR(AV) | 1.5A |
| Pin Length | 13mm / 0.511" |
| Pin Spacing Pitch | 2.5mm / 0.098" |
| Body Size | 16 x 10 x 5mm / 0.6" x 0.4" x 0.2"(L * W* T) |
| Hole Diameter | 3.6mm / 0.14" |
| Color | As Picture Show |
| Weight | 5g |
| Package Content | 1 x Positive Voltage Regulator |
Â
Description:
Â
Â
- Three-terminal positive regulator are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications.
- Provide local on-card regulation, eliminating the distribution problems associated with single point regulation.
- Output Current up to 1.5A.
- Thermal Overload Protection .                                 Â
- Short Circuit Protection.
- Output Transistor Safe Operating Area Protection .
