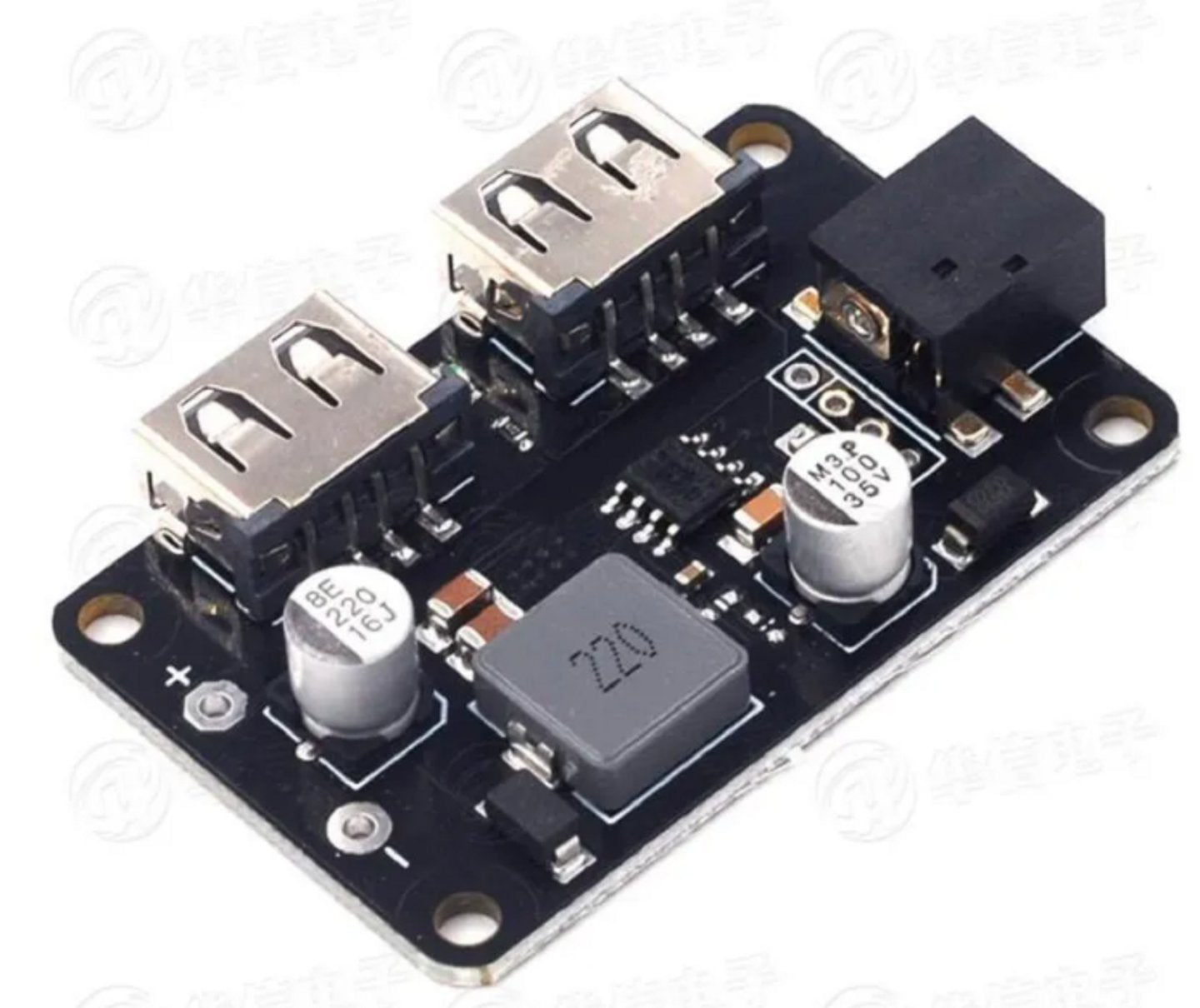

Specifications
- Input voltage: 10V to 32V
- Output voltage: 5V
- Rated current: 3A
- Conversion efficiency: 88%~93% (excluding loss of reverse connection protection diode)
- Support DCP protocol (BC1.2, Apple2.4A, Samsung)
- Input reverse connection protection
- Input overvoltage and undervoltage protection
- Input overcurrent protection
- Output overcurrent and short circuit protection
- Overtemperature protection of complete machine\
- Input interface: DC 5.5/2.1 (outer diameter 5.5mm, inner diameter 2.1mm)
- Product size: 51.4×33×9.3mm(4USB case version)
