4B000 Eachine TS832 RC832 Boscam 5.8 grams TSH 48 600 mega watt transmitter Vpf Receiver Combo F-FTCs t Group 7.4-16 V Spread on Eachine TS832 RC832 Boscam 5.8 grams TSH 48 600 mega watt transmitter Vpf Receiver Combo F-FTCs t Group 7.4-16 V

4B000 Eachine TS832 RC832 Boscam 5.8 grams TSH 48 600 mega watt transmitter Vpf Receiver Combo F-FTCs t Group 7.4-16 V Spread on Eachine TS832 RC832 Boscam 5.8 grams TSH 48 600 mega watt transmitter Vpf Receiver Combo F-FTCs t Group 7.4-16 V

Dhs. 650.00
Dhs. 650.00
Sale Sold out
View full details

Description:

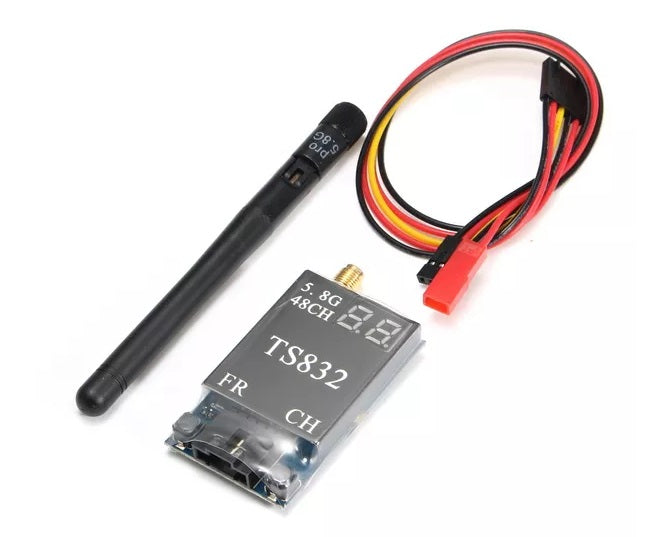

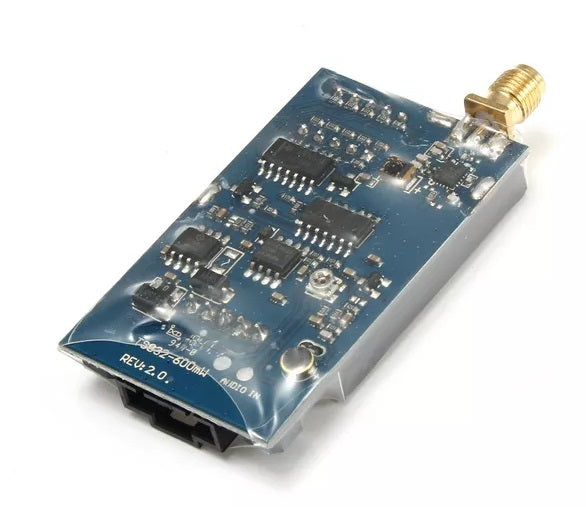

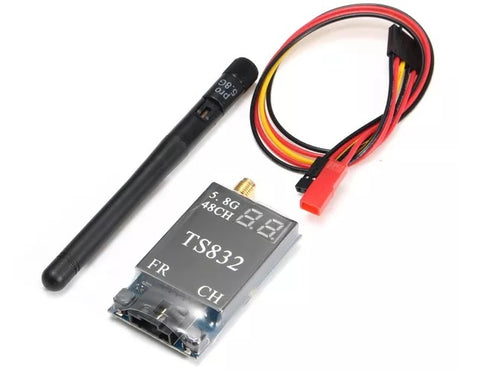

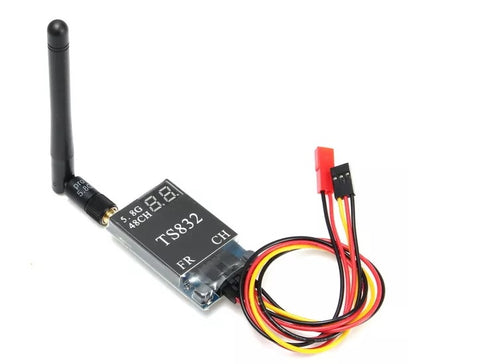

The Eachine TS832 transmitter, with a brand gain of 2db, operates on a frequency of 5.8G and is designed for power transmission of 600mA. It accepts input power ranging from 7.4 to 16V, with a suggested 3S LiPo battery. The video format can automatically switch between NTSC and PAL. It operates at a current work rate of 220mA at 12 volts and has an audio bandwidth of 6.5M and video bandwidth of 8M. Weighing approximately 22g and measuring 54x32x10mm (excluding antenna), it features an RP-SMA Jack connector on the module side and an RP-SMA plug on the antenna side.

Repeat

Army band Tash 1 Tash 2 Tash 3 Tash 4 Tash 5 Fire 6 Tash 7 Tash 8
A (A) 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz
B (B) 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz
C (E) 5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz
d (F) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz
E (R) 5658MHz 5695MHz 5732MHz 5769MHz 5806MHz 5843MHz 5880MHz 5917MHz
F 5362MHz 5399MHz 5436MHz 5473MHz 5510MHz 5547MHz 5584MHz 5621MHz

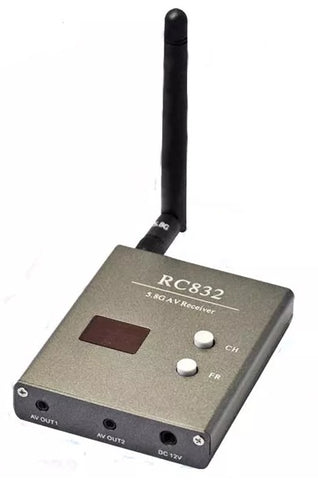

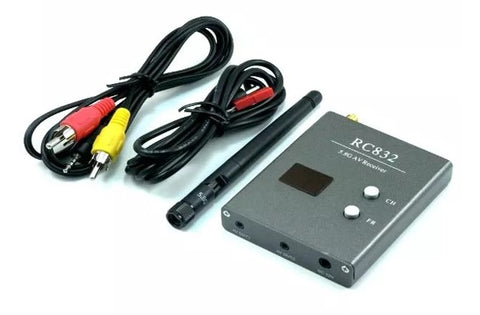

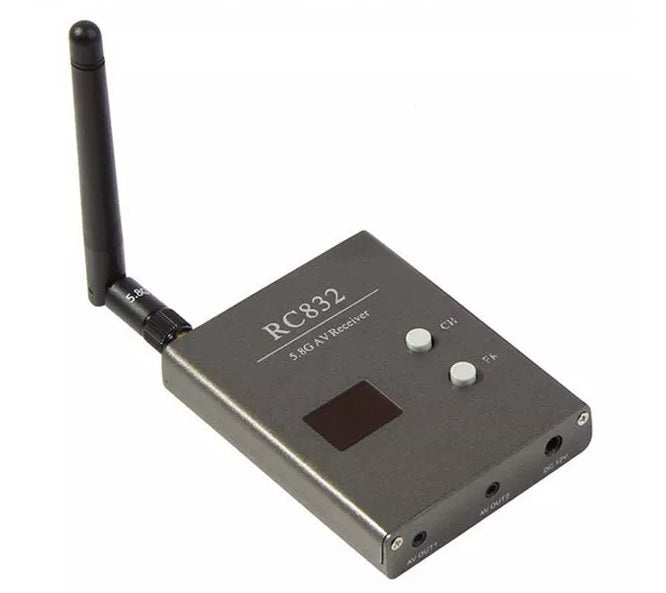

RC832 Receiver

  • brand name: Eachine
  • Item name : RC832 receiver
  • gain antenna: 2db
  • antenna impedance: 50Ω
  • video impedance: 75Ω
  • video Format: NTSC / pAL auto
  • Input Power: 12V
  • Current Work: 200ma Max
  • Dimension: 80x65 x15mm
  • Weight: About 85g
  • Connector: Receiver Module side RP-SMA Jack, Antenna RP-SMA plug


Features

  • 48 channels are available for optimal transmission quality.
  • compatible with nearly all 5.8 GHz frequency devices.
  • compact size and lightweight design.
  • supports 32 TSH and is compatible with all VPF 5.8GHz receivers.
  • powerful 600 mW transmitter with 32 FM wireless transmitter channels.
  • super small 200 mA stream for 600 mW wireless transmitter power.
  • provides a transmission range of up to 5 kilometers in open areas, extendable to 5-8 kilometers with high-gain antennas.

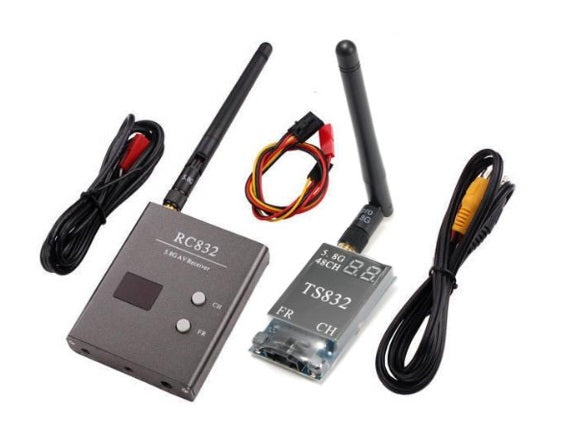

Package includes:

  • 1 × Eachine TS832 48CH transmitter
  • 1 × Eachine RC832 48CH receiver
  • 3 × Cable
  • 2 × AntennaÂ
