2D3-8 Ethernet LAN Network Module ENC28J60

Description

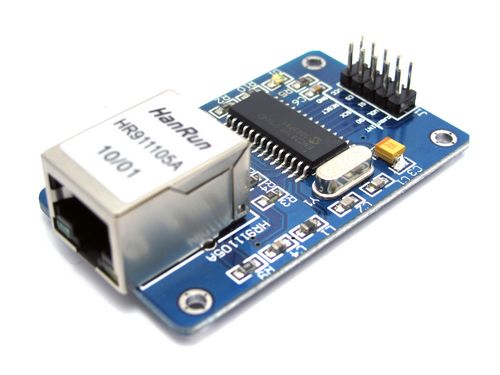

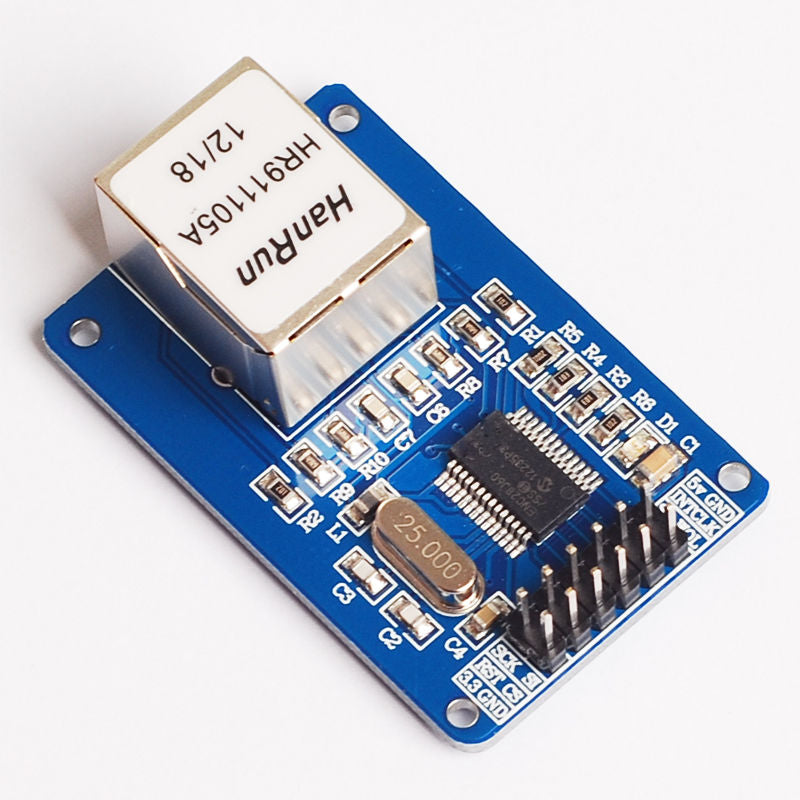

The ENC28J60 Ethernet Module (10-Pin Package: SSOP) is a board that contains an Ethernet port and converts Ethernet input into SPI. The board is based on Microchip’s ENC28J60 integrated circuit, and it can be used to provide internet connectivity to microcontroller systems like Arduino boards over Ethernet.

Since the board is small in size and supports SPI, it is applicable to a variety of projects.

Utilizes the new SSOP 10 package Microchip ENC28J60 Stand-Alone Ethernet Controller IC, featuring a host of features to handle most network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 25 MHz

The ENC28J60 Ethernet Module (10-Pin Package: SSOP) is an industry standard Serial Peripheral Interface (SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI.

This ENC28J60 Ethernet Module (10-Pin Package: SSOP) includes all you need to change your Arduino into an Ethernet device for your network. These days, many manufacturers prefer WiFi-type network communication. Ethernet still has lots of applications and remains a fast and secure way to connect to network devices.

Datasheet

Features

1. Fully Compatible with 10/100/1000Base-T Networks
2. Integrated MAC and 10Base-T PHY
3. Supports One 10Base-T Port with Automatic Polarity Detection and Correction
4. Supports Full and Half-Duplex modes
5. Automatic Programmable Retransmit on Collision
6. Programmable Padding and CRC Generation
7.  Automatic Rejection of Erroneous Packets
8. SPI Interface with Clock Speeds Up to 20 MHz
9. Chipboard ENC28J60/SS.
10. The board 25MHZ crystal.
11. The network interface board HR911105A.
12. 5 V power supply pin.
13. Stable performance.
14. For Arduino, SPI, AVR, PIC, LPC, STM32.

Specifications

Package Includes:

• 1 x  ENC28J60 LAN Ethernet Network Module

Pinout

Downloads

Example Code for the ENC28J60 Module.zip
