Specification:
HC-06 Bluetooth module
- Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
- Works with any USB Bluetooth adapters.
- Default Baud Rate: 9600,8,1,n.
- Built in antenna.
- Coverage up to 30ft.
- Bluetooth version: V2.0+EDR
- Operating voltage: 3.3V
- Default Baud Rate: 9600,8,1,n.
- Signal coverage: 30ft
- Cable length: 21.5cm
Commercial Series:
- Bluetooth module board Series
- With LED indicator light, use 150mA and 3.3V regulation chip.
- With VCC、GND、TXD、RXD foot for the Bluetooth
- With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
- Compatible with bluetooth master module"、slave module"or master-slave(whole) module.
- Input voltage: 3.3~6V
- Size: 1.55cm*3.98cm
Note:
input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
Package Included:
- 1 x HC-06 bluetooth module with backboard

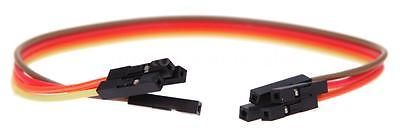

- 4 x female to female jumper wires
