Description

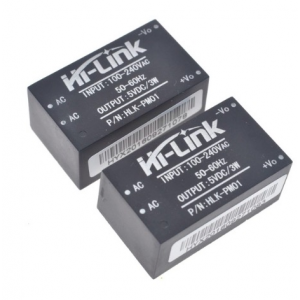

The HLK-PM01 is an AC-DC power supply module that converts 220V AC power to 5V DC power. It is designed to be used in DIY projects, and features an intelligent household switch that can be programmed to turn on or off based on specific conditions. Overall, it is a useful tool for converting power supplies and providing versatile and efficient power to electronic devices.
Features
- Ultra-thin, ultra-small, the smallest volume in the industry
- Universal input voltage (90~245Vac)
- Low power consumption, green environmental protection, no-load loss <0.1W
- Low ripple, low noise, no external circuit required
- Good output short-circuit and over-current protection and self-recovery, high efficiency and high power density
- Input and output isolation withstand voltage of 3000 Vac.
- High reliability, long-life design, and continuous working time of more than 100,000 hours
- Meet UL and CE requirements; product design meets EMC and safety testing requirements
- High-quality, environmentally friendly waterproof thermal conductive glue potting is moisture-proof and anti-vibration, in line with waterproof and dustproof IP65 standardsHLK-PM01
Features
- Rated input voltage: 100-240VAC; Input voltage range: 90-264 VAC
- Maximum input current: ≤0.2A; input surge current:≤10A
- Maximum input voltage: ≤270 VAC
- Input slow start: ≤50mS
- Input low voltage efficiency: Vin= = 110 VAC, output full load ≥ 69%; input high voltage efficiency: Vin = 220 VAC, output full load ≥ 70%
- Long-term reliability: MTBF≥100,000h
- No-load rated output voltage: 5±0.1VDC; full-load rated output voltage: 5±0.2VDC
- Short-term output current limit: ≥1000mA; long-term output limit: ≥600 mA
- Voltage regulation: ±0.2%; Load regulation: ±0.5%
- Output ripple and noise (mVp-p): ≤50 mV, rated input voltage, full output. Tested with a 20 MHz bandwidth oscilloscope, load side, and 10 uF and 0.1 uF capacitors.
- Switching machine overshoot range: (rated input voltage, output plus 10% load) ≤ 5% VO
- Output overcurrent protection: 150–200A is the output load limit
- Output short-circuit protection: direct short-circuit during normal output, and automatically resume normal operation after short-circuit
