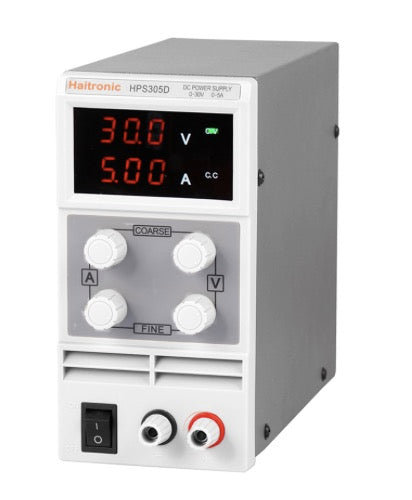

Haitronic HPS305D Short Review: Single-channel direct current (0 - 5 A) and voltage (0 - 30 V) power supply unit with built-in LED display.
Haitronic HPS305D Mini Switching DC Power Supply Unit features single channel output, high accuracy, dual LED display. It is adjustable within the rated AC/DC.
User safety is ensured by overload protection, overheat protection and short circuit protection functions. Small size, easy handling, a sturdy case, good performance and excellent cost effectiveness make this power supply unit perfect for science investigation, college and factory applications, electronic device maintenance and more.
FEATURES
- Single-channel output.
- CC/CV auto switchable.
- 110V/220V switchable.
- Overload protection function.
- Overheat protection function.
- Short circuit protection function.
- Coarse/fine adjustment of voltage and current.
- Cooling with fan.
- 3/4 digital LED display for voltage and current.
- Small body, light weight (only 1.4 kg), easy to carry.
TECHNICAL SPECIFICATIONS
| Input voltage | AC 110 V / 220 V, 50/60 Hz |
| Output voltage | 0 ~ 30 V |
| Output current | 0 ~ 5 A |
| Voltage resolution | 10 / 100 mV |
| Current resolution | 1 / 10 mA |
| Ripple and noise | Vp-p ≤ 1% |
| Voltage display precision | ±1% +1 digit |
| Current display precision | ±1% +2 digits |
| Dimensions, W × H × L | 81 × 165 × 220 mm |
| Net/gross weight | 1.4 kg / 1.7 kg |

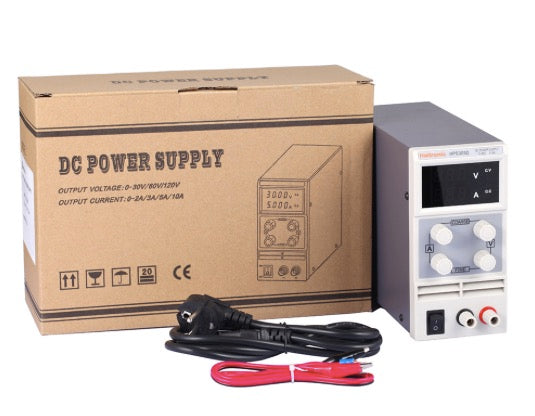

PACKAGE CONTENTS
- Haitronic HPS305D power supply unit — 1 pc.
- Power cord — 1 pc.
- Test leads — 1 set
- User manual — 1 pc.
