2c8 IR Wireless Control Receiver Board 1 Channel Relay Driving Module Remote Control 12V

2c8 IR Wireless Control Receiver Board 1 Channel Relay Driving Module Remote Control 12V

Regular price Dhs. 29.00
Regular price Sale price Dhs. 29.00
Sale Sold out
View full details

Description

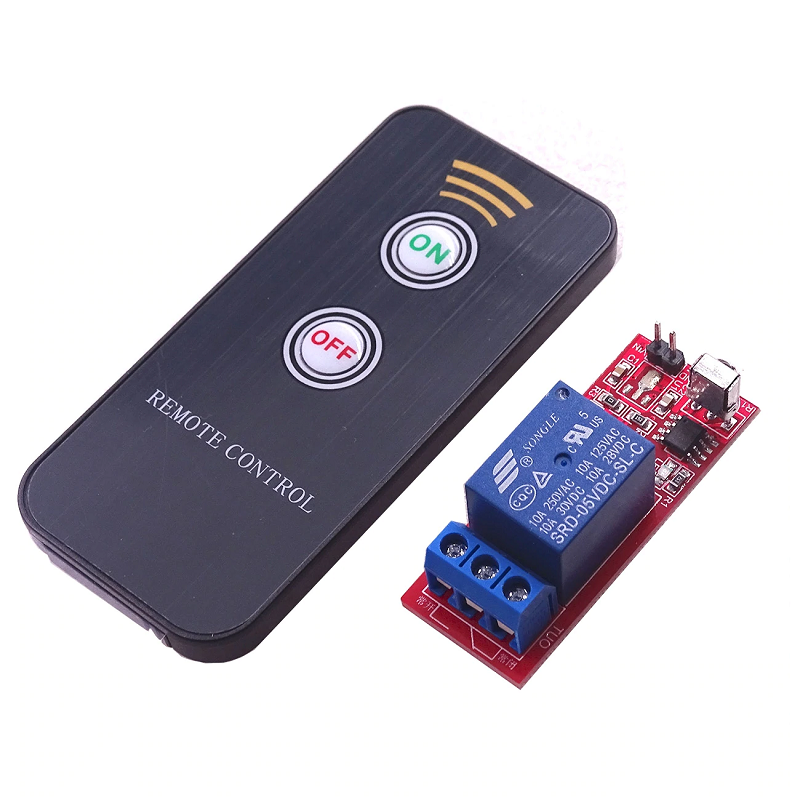

This 5V One Channel IR Wireless Relay Module with Remote Control is a one channel latching relay module. The output of the module is a passive output and it can be controlled by its 2-button IR wireless controller when the module is powered on. The module comes equipped with suitable remote control. It also can drive most household electrical appliances. The operating voltage for this module is 5VDC

Also, the module comes with a dedicated remote. Moreover, the relay used in this module is a high current relay.

There are indicator LEDs on the module for power output status.

The application for this module includes different devices with different current ratings.

Features

  • Operating Voltage: DC 12V
  • Remote Distance: 8m
  • LED indicator
  • With 3mm fixed screw holes, it's easy to install.
  • Module Interface: VIN+ power supply anode 9-13V, GND- power supply cathode
  • The middle of three ports is public, it can be normally open and normally closed output with the others.
  • The circuit is insulated before the relay's output and input.
  • Remote Controller make use of UPD6122 chip and NED coding format,
  • frequency is 38K.
  • Remote Controller User Code: OxOOFF
  • Key Value: "ON"---40, "OFF"---19
  • Battery: CR2025(Batteries are not included.)

Specifications

  • Weight: 33g
  • Relay Size: 5(L)x2(W)x1.8(H)cm
  • Remote Controller Size: 4(L)x0.7(W)x8.5(H)cm

Package Included:
1xRelay Driving Module
1xRemote Controller
