Description

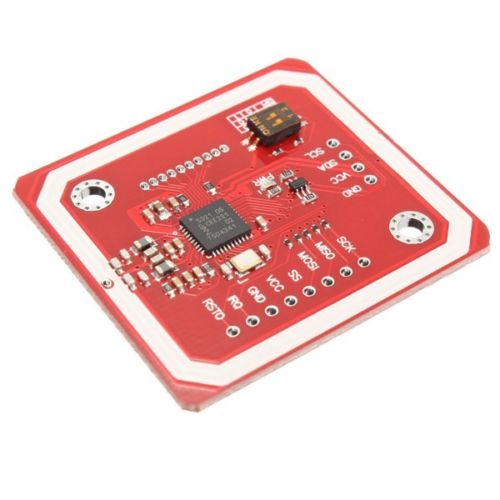

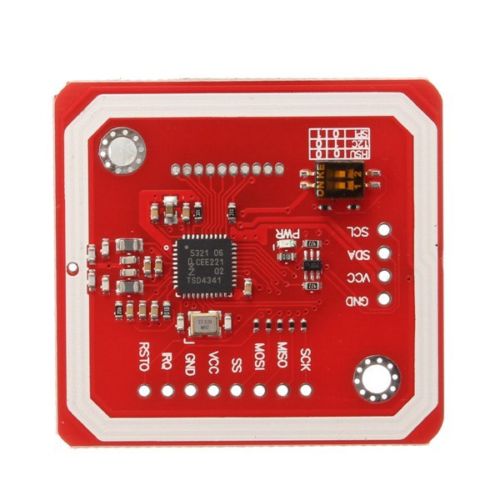

The NXP PN532 is a versatile NFC/RFID module that supports both proximity and contactless technologies. This module is widely used in various applications, such as payments, access control, and tracking. It is part of NXP's range of secure element products and is designed to provide high levels of security and reliability. The NXP PN532 V3 kit includes everything you need to get started with NFC/RFID development, including the module, software development tools, and example code. The Reader Writer kit adds a reader/writer interface to enable easy reading and writing of NFC and RFID data.
Features
- Small dimension and easy to embed into your project
- Support I2C, SPI and HSU (High Speed UART), easy to change between those modes
- Support RFID reading and writing, P2P communication with peers, and NFC with Android phone
- Up to 5cm~7cm reading distance
- On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
- Arduino compatible, plug in and play with our shield

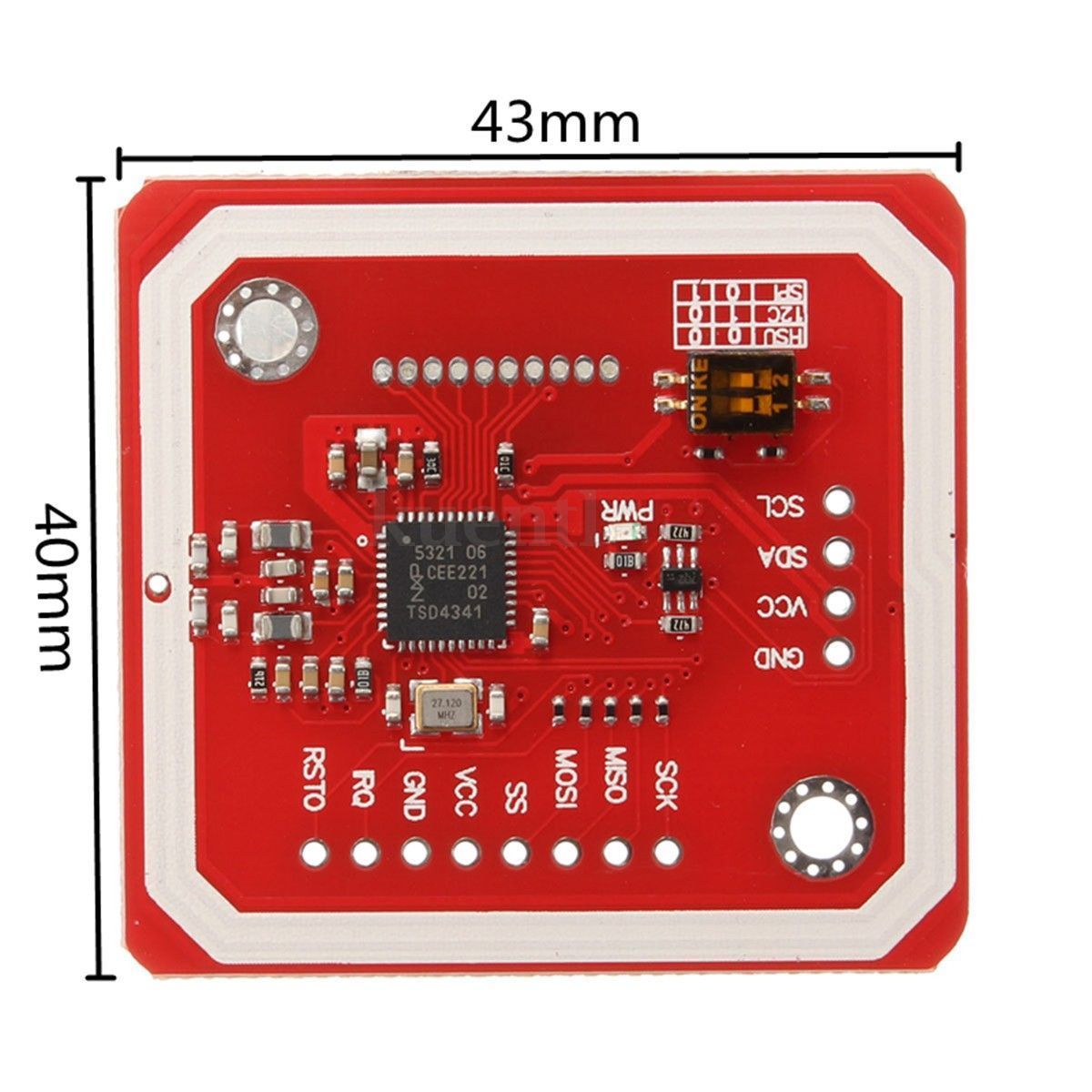

- Size: 43*40mm
RFID reader/writer supports

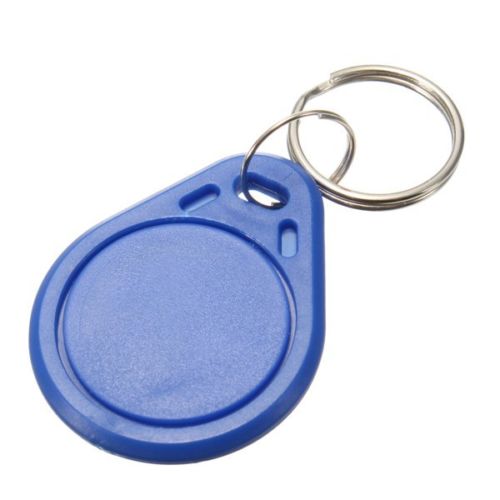

- Mifare 1k, 4k, Ultralight, and DesFire cards
- ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, and P5CN072 (SMX)
- Innovision Jewel cards, such as IRT5001 card
- FeliCa cards such as RCS_860 and RCS_854
Package Includes

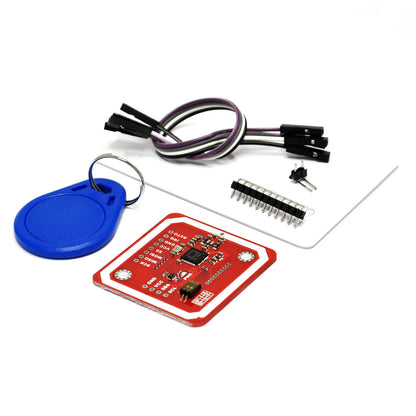

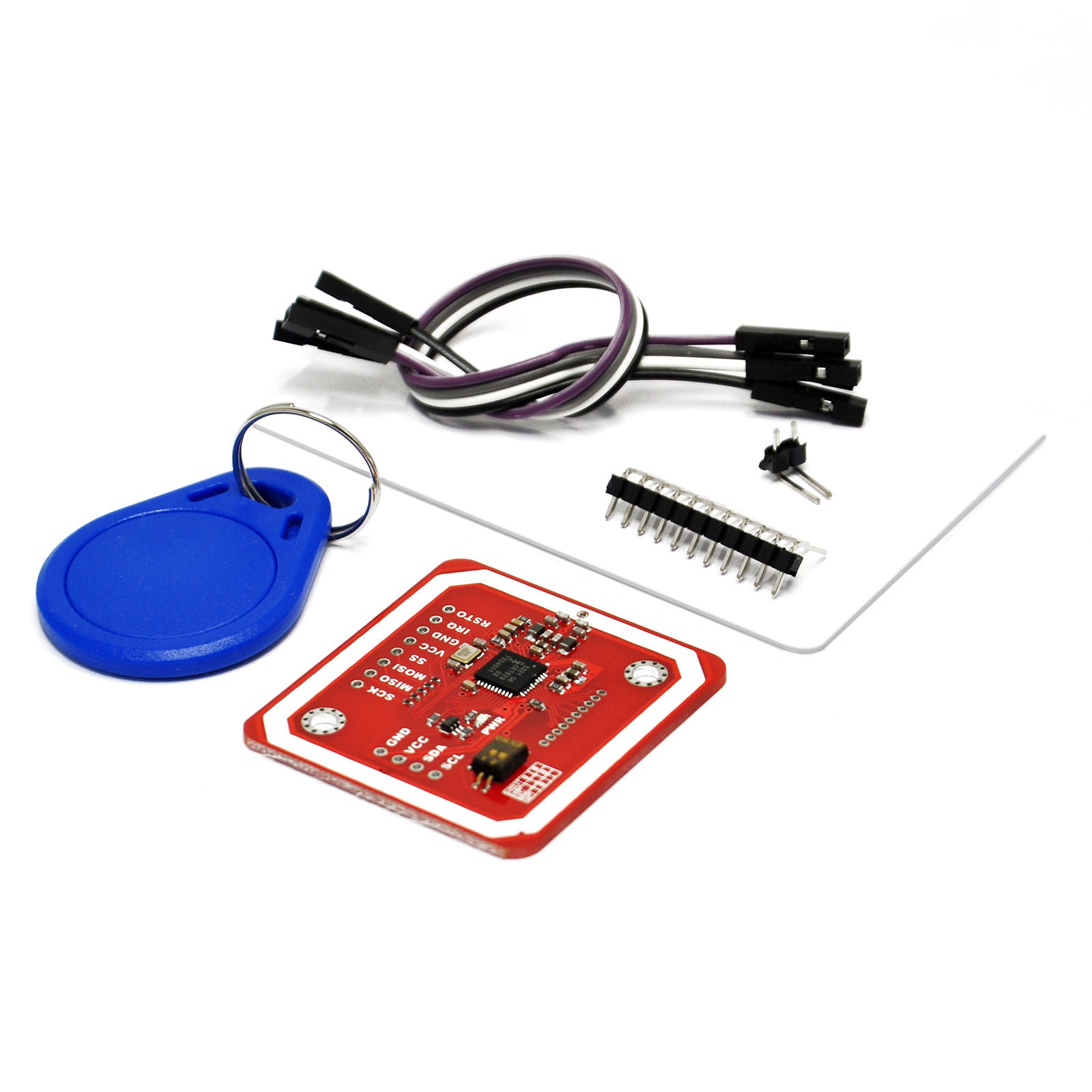

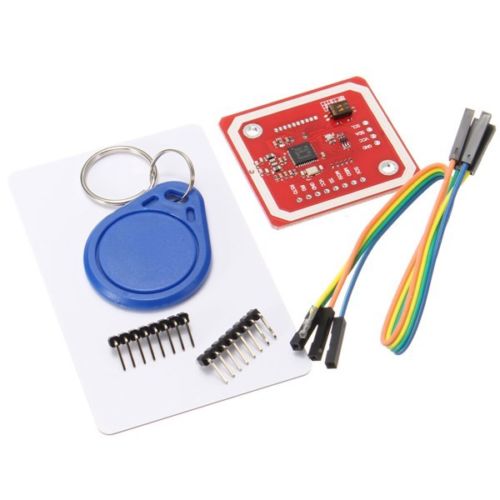

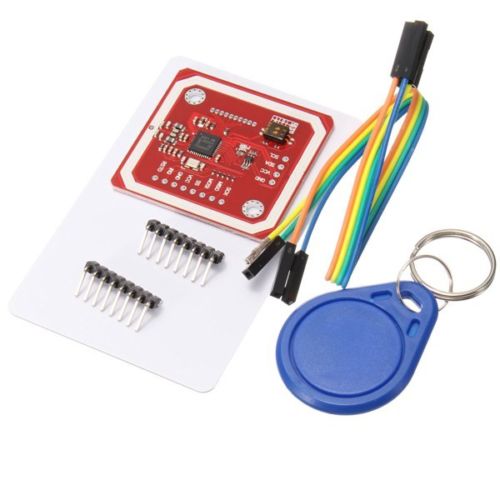

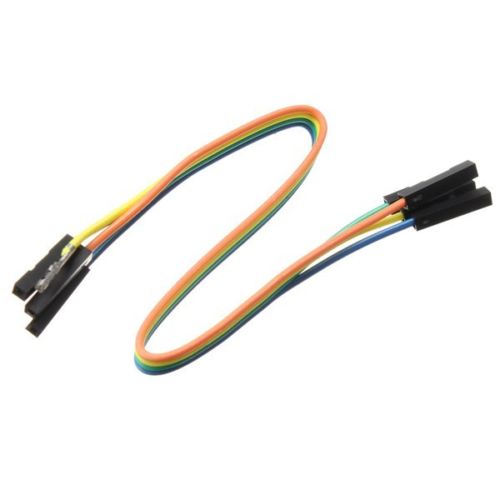

- 1 x NXP PN532 NFC RFID Module V3 Kits Reader Writer kit
