Description
This driver uses Infineon chips BTS7960, composed of a high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A
Specifications
- Double BTS7960 large current (43 A) H bridge driver;
- 5V isolate with MCU, and effectively protect MCU;
- 5V power indicator on board;
- voltage indication of motor driver output end;
- can solder heat sink;
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
- isolation chip 5 V power supply (can share with MCU 5 V);
- Size: 4 * 5 * 1.2 cm;
- Able to reverse the motor forward, two PWM input frequency up to 25 kHz;
- two heat flows passing through an error signal output;
- isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
- the supply voltage 5.5V to 27V
Package Includes

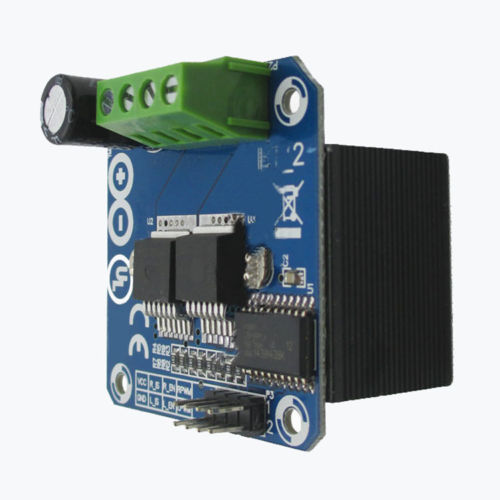

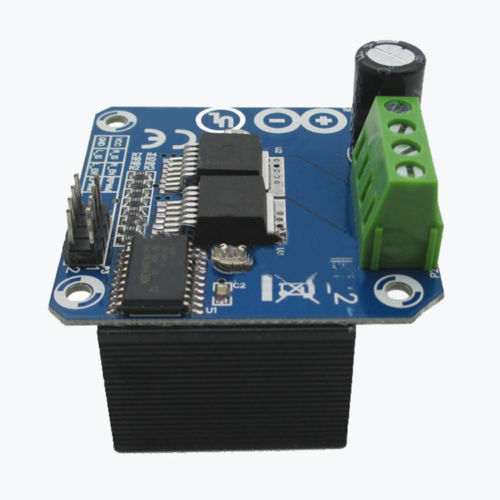

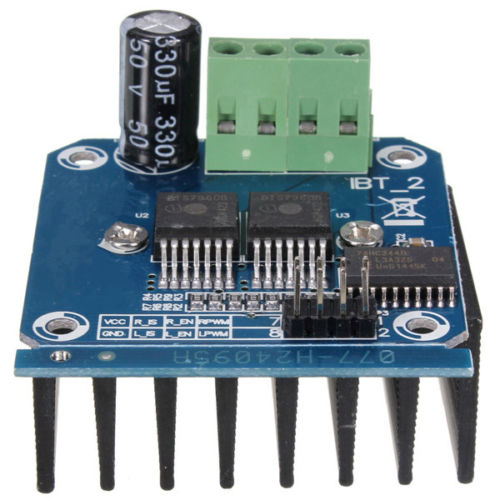

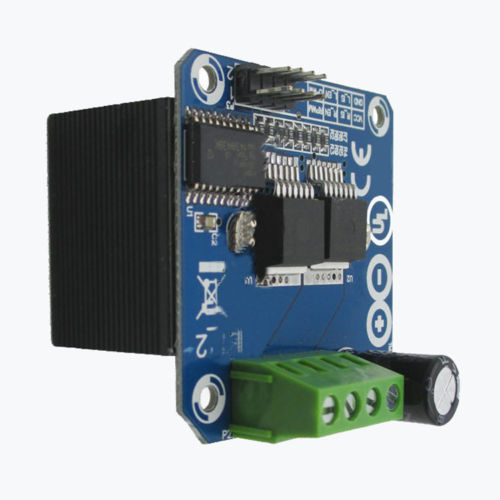

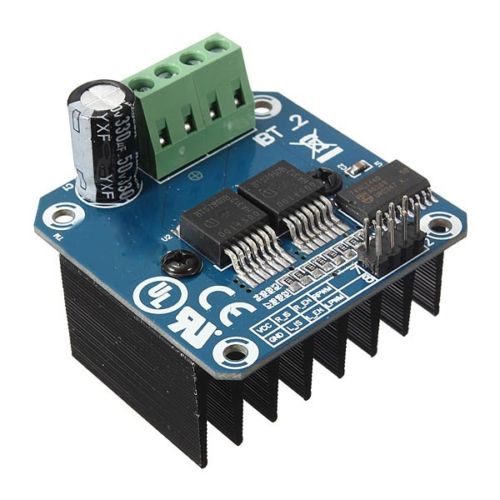

- 1 x Semiconductor BTS7960B Motor Driver 43A H-Bridge Drive
