Description

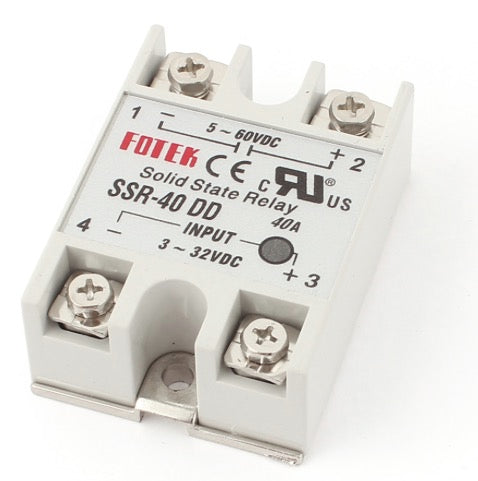

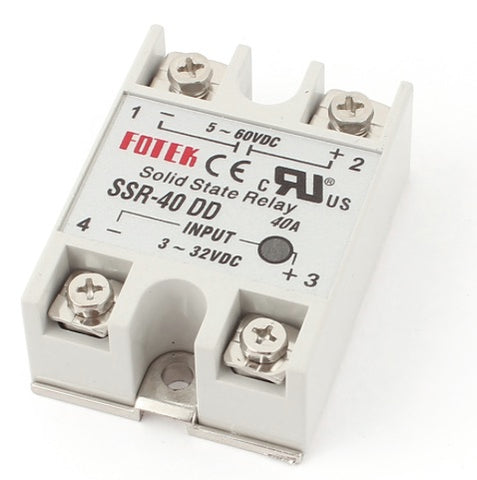

A Solid State Relay (SSR) module is an electronic circuit that acts as a switch, allowing a low-voltage input signal to control a higher-voltage output device. The SSR-40Dd is a specific SSR module offered by the company Diodes Inc. This module operates between 3-32V and 5-60V, with a maximum current rating of 40A. It is suitable for use in applications such as home automation, industrial automation, and scientific research. The module can be controlled via a variety of signaling methods, including TTL, SPI, I2C, and UART.
Specifications
- Long service life and high reliability
- Reduced electromagnetic interference
- Model: SSR-40 DD.
- Input voltage: 3-32VDC.
- Output voltage: 5-60VDC.
- Output current: 40A.
- On voltage: 1V.
- One-off Time: 10ms.
- Off leakage Current: 2mA.
- Weight: 0.106kg.
Package Includes:
- 1 x Solid state relay SSR-40DD 40A 3-32V DC to 5-60V DC SSR 40DD relay solid state
