Description
TFT LCD screens are displays that combine an LCD (Liquid Crystal Display) panel with integrated touch-sensitive components. TF (Touch Feedback) refers to a display with tactile feedback, that provides a haptic sensation when pressed. TFT LCD screens with touch support can be connected to an Arduino microcontroller like the UNO, R3, or Mega 2560 using a microSD reader for memory storage. This setup allows for the creation of interactive projects that combine display and touch input capabilities.
Features:
- 2.4″ diagonal LCD TFT display
- Bright, 4 white-LED backlights are on by default but you can connect the transistor to a digital pin for backlight control
- Colorful, 18-bit, 262,000 different shades
- 4-wire resistive touch screen
- 8-bit digital interface, plus 4 control lines
- Uses digital pins 5–13 and analog 0-3. That means you can use digital pins 2, 3 and analog pins 4 and 5. Pin 12 is available if not using the microSD.
- 5V compatible, use with 3.3V or 5V logic
- For Arduino UNO R3
- Resolution: 240X320
- Driver IC: ILI9341
Package included:Â

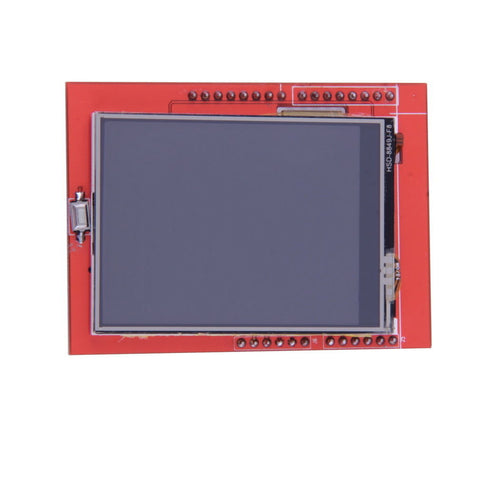

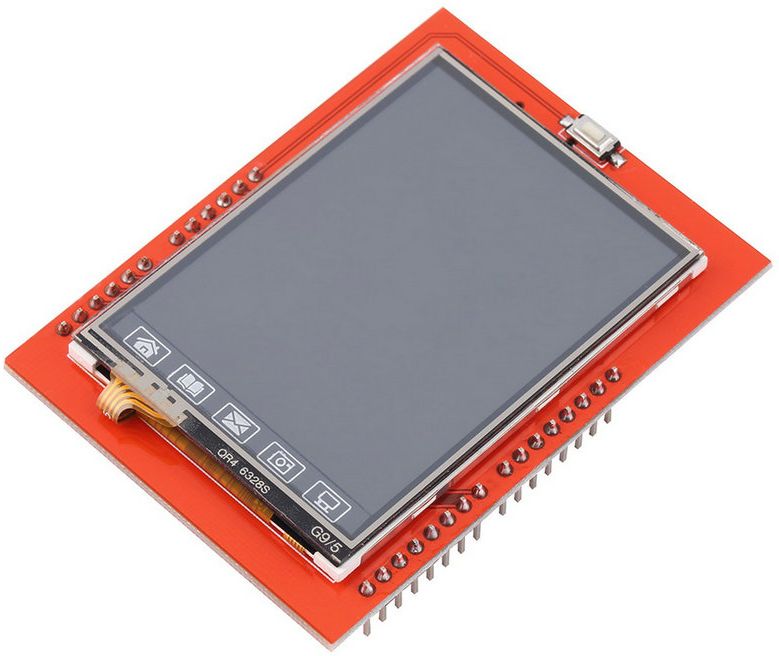

- 1 x 2.4 TFT LCD Shield SD Socket Touch Panel Module
