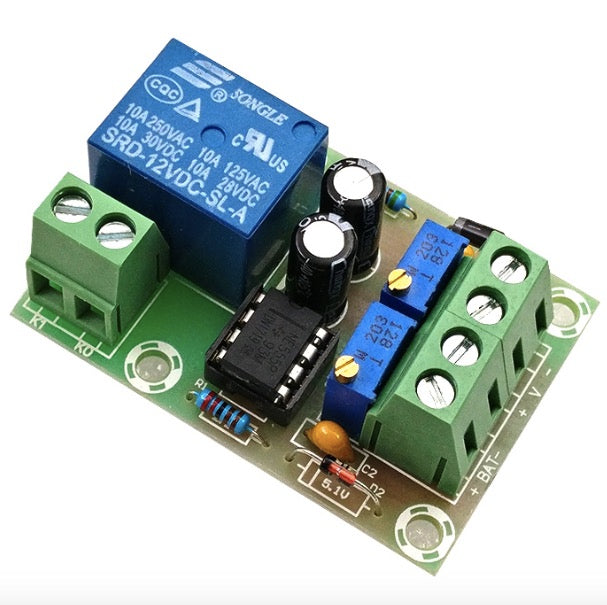

XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Control Panel Automatic Charging Power
Model: XH-M601
Power Supply: 13.8V-14.8V
Relay closing voltage: 12.4V
Relay off voltage: 14.8V
Voltage error:±0.1V
Voltage detection: DC voltmeter
Charging type: 12V battery
Potentiometer adjustment: RP1 RP2 (carefully adjusted)
PCB Board Size: 65mm x 52mm x 30mm / 2.56" x 2.05" x 1.18" (L x W x H)
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 0.5-1cm measuring deviation due to manual measurement.
1 cm = 0.3937 "
